Hwashi Wire Welding Machine For Animal Cages Automatic Fast Metal Mesh Spot Welder
The wire mesh multi-head automatic welding machine introduces a cutting-edge approach to welding processes. It stands out by incorporating ten electrodes and a sophisticated automatic feeding system. The system ensures seamless wire integration, with wires dropping automatically into the fixture for a fully automated loading process. Subsequently, the machine autonomously carries out both feeding and welding operations.
What sets this machine apart is its one-way and double-layer feeding device, capable of dynamic forward and backward movement to accomplish welding tasks. The welding distance is customizable, adding a layer of flexibility to the welding process. This feature-rich machine is specifically tailored for batch production scenarios, especially ideal for wire mesh requiring multiple-point welding.
The welding methodology employed is a unique one-way double-layer automatic stepping feeding, utilizing 10 welding heads. This innovative approach results in an effective welding width of 1200mm and an effective welding length of 1000mm. The machine's composition includes a robust main machine body, welding transformer, pneumatic drive device, upper and lower electrodes, automatic wire filling device, an advanced electrical control system, cooling system, and a PLC operation control system.
This state-of-the-art wire welding machine not only ensures efficiency in batch production but also provides unparalleled adaptability and precision in welding operations, making it a standout solution in the industry.
Ideal for Various Industries:
Metal Fabrication: Perfect for welding metal components with precision and efficiency.
Construction: Streamline welding processes for structural components and frameworks.
Automotive: Achieve high-quality welds for automotive parts with ease.
Custom Projects: Adapt the machine to your specific project needs, from prototyping to large-scale production.
 |  |
Intelligent welding control system Automatic welding by inputting coordinate data of welding position, welding current and other data. | Special product molds welding platform Processing and production according to the size of each mesh product |
 |  |
X.Y axis moving device Equipped with automatic movement of the workpiece mold along X and Y axes, only manual swinging and removal of the workpiece is required | Single head long arm type welding The equipment adopts single head long arm type welding structure, can be customized according to the needs of the workpiece double row or multi-row welding head |
Specification
| Model | WL-TSP-100/150K |
| Input Power (V/φ) | 380/3 |
| Rated Power (KVA) | 100/150 |
| Applicable Material | Stainless Steel, Carbon steel, Aluminum, Metal |
| Electrode Force (KG) | 250-400 |
| Wleding Thickness (MM) | 1-5mm |
| Warranty | 1 years |
| Mesh Welding Range | 1000mm X 1000mm |

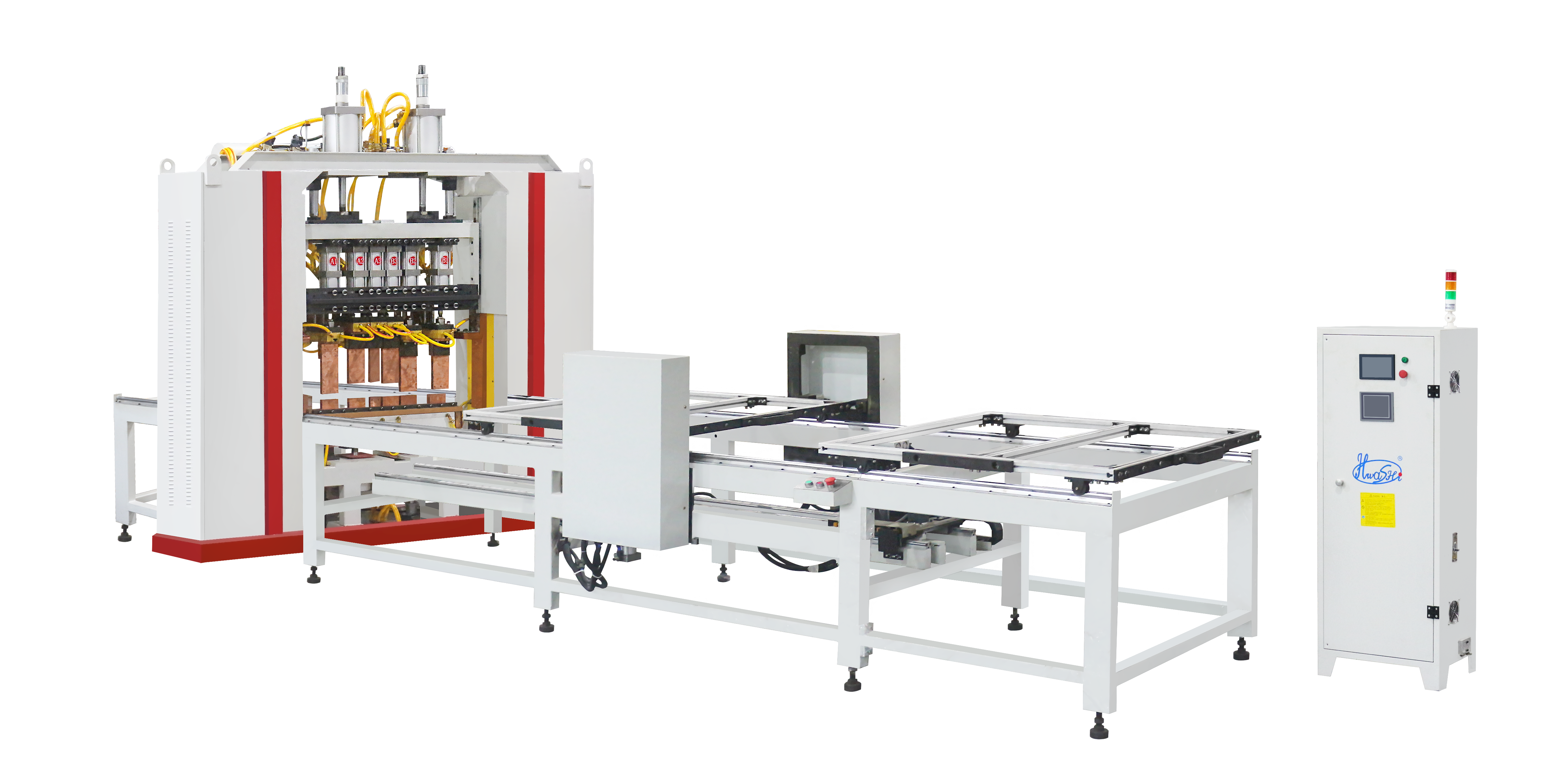

XY axis automatic moving wire welding machine
The wire welding machine features a highly efficient servo motor-driven XY axis mold frame, utilizing a synchronous belt drive system. Controlled by the advanced control system, the machine enables precise control over the walking step length and speed. Once the manual material is securely fixed onto the mold frame, the switch is activated, and the industrial control computer takes charge. The product then undergoes automated welding as it alternately moves along the X and Y axes of the mold frame, seamlessly completing the welding process for each joint. Upon completion, the machine automatically returns to the origin without requiring additional manual intervention. This eliminates the need for additional personnel during the welding operation. Meanwhile, the operator can utilize the available time to set up the next material, optimizing efficiency and reducing labor costs. By effectively utilizing the welding time for material setup, the machine ensures maximum productivity and streamlines the overall workflow.
